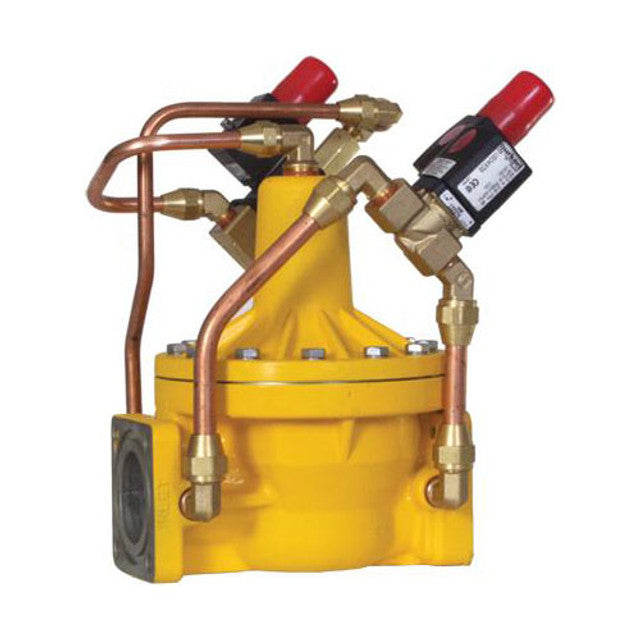

A284811 - 2" BLOCK VALVE, 2-STAGE CLOSURE, 12VDC, BRASS & COPPER PLUMBING, BUNA/ VITON®* SEALS

Flow-Rate: 200 GPM (757 LPM) Pressure Rating: 150 PSI (10 BAR) Temperature Range: -40 to 160 °F (-40 to 71 °C) LPG Pressure Rating: - Maximum non-shock working pressure: 350 PSI (24 BAR) - Maximum differential pressure: 125 PSI (86 BAR) Refined Fuels Pressure Rating: - Maximum non-shock working pressure: 150 PSI (10 BAR) - Maximum differential pressure: 100 PSI (69 BAR) Materials of Construction: - Main valve body and bonnet/cap: A3560 anodized aluminum - Main valve internal trim: Anodized aluminum, brass, plated steel Elastomers: Valve diaphragm and O-ring seals - Nitrile Rubber UL Approved Solenoids Outputs: - Voltage: 10.2 to 27.2 VDC - Current: 1 A maximum Regulatory: Explosion-proof, UL approved for NEMA 7 requirements for Class I, Division 2, Group C and D hazardous locations
