Parts diagram

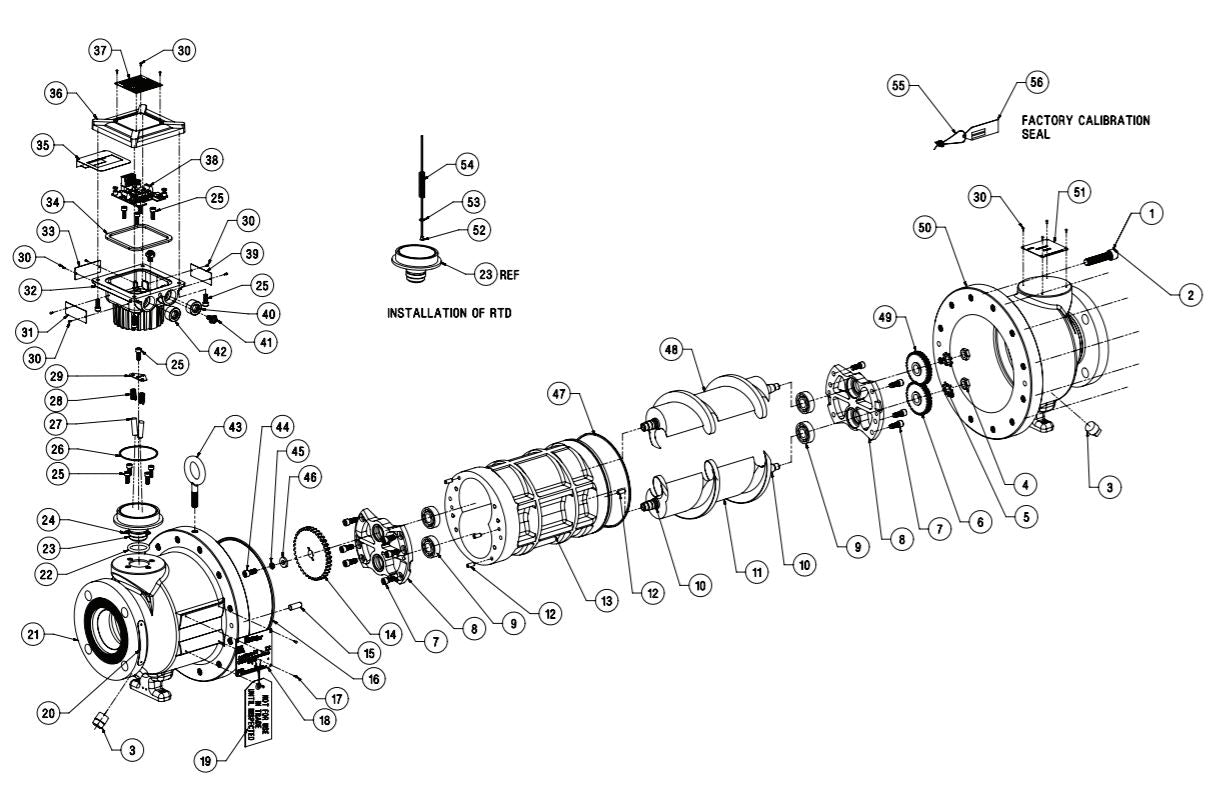

BRP4IN - BRODIE 4" BiRotor PLUS EXPLODED VIEW

Search diagram parts

Part 1

151482-024M - SCREW HEX SOCKET HEAD--X-DRILLED

SKU: 151482-024M

SCREW HEX SOCKET HEAD--X-DRILLED

$45.00

In stock

Quantity

View product

Part 2

151482M - SCREW HEX SOCKET HEAD

SKU: 151482M

SCREW HEX SOCKET HEAD

$30.00

In stock

Quantity

View product

Part 3

154704-024M - PLUG PIPE - X DRILL

SKU: 154704-024M

Pipe Plug, MTRs-154704-024M

$35.00

In stock

Quantity

View product

Part 3

154704-024M - PLUG PIPE - X DRILL

SKU: 154704-024M

Pipe Plug, MTRs-154704-024M

$35.00

In stock

Quantity

View product

Part 4

60592 - LOCKNUT

SKU: 60592

LOCKNUT

$55.00

In stock

Quantity

View product

Part 5

51593 - GEAR RET LOCKWASHER

SKU: 51593

GR RET LOCKWASHER

$45.00

In stock

Quantity

View product

Part 7

151042 - SCREW SET SOCKET HEAD

SKU: 151042

SCREW SET SOCKET HEAD - 151042

$25.00

In stock

Quantity

View product

Part 7

151042 - SCREW SET SOCKET HEAD

SKU: 151042

SCREW SET SOCKET HEAD - 151042

$25.00

In stock

Quantity

View product

Part 8

86825-100 - END PLATE - 4" BR PLUS

SKU: 86825-100

END PLATE - 4" BR PLUS

$435.00

In stock

Quantity

View product

Part 8

86825-100 - END PLATE - 4" BR PLUS

SKU: 86825-100

END PLATE - 4" BR PLUS

$435.00

In stock

Quantity

View product

Part 9

155197-001CER - BEARING ROLLER; 4" & 6" BI-ROTOR PLUS CERAMIC

SKU: 155197-001CER

BEARING ROLLER; 4" & 6" BI-ROTOR PLUS CERAMIC

$520.00

In stock

Quantity

View product

Part 9

155197-001CER - BEARING ROLLER; 4" & 6" BI-ROTOR PLUS CERAMIC

SKU: 155197-001CER

BEARING ROLLER; 4" & 6" BI-ROTOR PLUS CERAMIC

$520.00

In stock

Quantity

View product

Part 10

152071 - O-RING

SKU: 152071

ORING

$25.00

In stock

Quantity

View product

Part 10

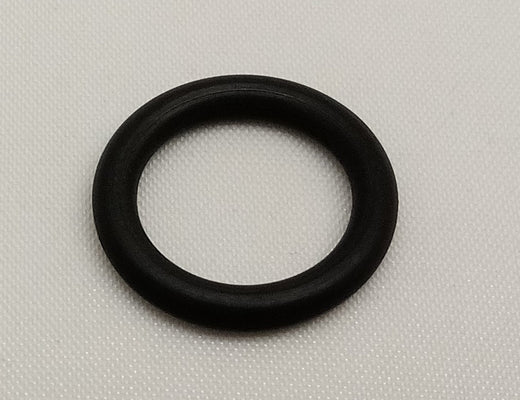

152071-022 - O-RING VITON-A

SKU: 152071-022

O-RING VITON-A - 152071-022

$30.00

In stock

Quantity

View product

Part 11

86276-000 - LEFT HAND ROTOR

SKU: 86276-000

LEFT HAND ROTOR

$2,730.00

In stock

Quantity

View product

Part 13

W86211-100 - BIROTOR PLUS MEASURING UNIT BODY SERVICE KIT

SKU: W86211-100

BIROTOR PLUS MEASURING UNIT BODY SERVICE KIT

$1,410.00

In stock

Quantity

View product

Part 14

86031-043 - PULSE WHEEL - 4" BR PLUS

SKU: 86031-043

PULSE WHEEL - 4" BR PLUS

$540.00

In stock

Quantity

View product

Part 15

154097 - DOWEL PIN - BODY

SKU: 154097

DOWEL PIN - BODY

$25.00

In stock

Quantity

View product

Part 16

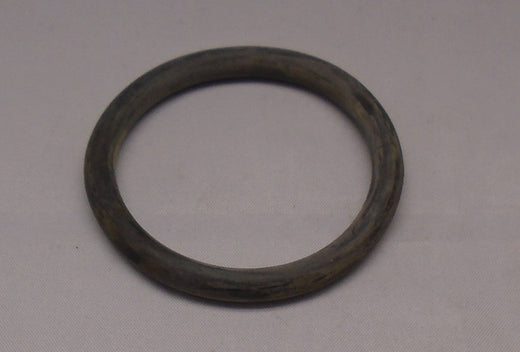

152088-022 - O-RING VITON-A

SKU: 152088-022

O-RING VITON-A - 152088-022

$95.00

In stock

Quantity

View product

Part 17

153966 - SCREW DRIVE CS

SKU: 153966

SCREW DRIVE CS - 153966

$25.00

In stock

Quantity

View product

Part 22

157360-022 - O-RING VITON-A

SKU: 157360-022

O-RING VITON-A - 157360-022

$35.00

In stock

Quantity

View product

Part 24

152066 - O-RING BUNA-N

SKU: 152066

O-RING BUNA-N - 152066

$25.00

In stock

Quantity

View product

Part 24

152066-022 - O-RING VITON-A

SKU: 152066-022

O-RING VITON-A - 152066-022

$25.00

In stock

Quantity

View product

Part 25

151496M - SCREW HEX SOCKET HEAD SS

SKU: 151496M

SCREW HEX SOCKET HEAD SS

$25.00

In stock

Quantity

View product

Part 26

1500093-022 - O-RING VITON-A

SKU: 1500093-022

O-RING VITON-A - 1500093-022

$30.00

In stock

Quantity

View product

Part 27

899-00-201-00 - MAGNETIC SENSOR (BI-ROTOR PLUS)

SKU: 899-00-201-00

MAGNETIC SENSOR (BI-ROTOR PLUS)

$215.00

In stock

Quantity

View product

Part 27

899-00-201-01 - MAGNETIC SENSOR (BI-ROTOR PLUS) - HI-TEMP

SKU: 899-00-201-01

MAGNETIC SENSOR (BI-ROTOR PLUS) - HI-TEMP

$435.00

In stock

Quantity

View product

Part 28

1500418 - SPRING

SKU: 1500418

SPRING - 1500418

$25.00

In stock

Quantity

View product

Part 29

86030-001 - HOLD-DOWN FOR PICKOFF

SKU: 86030-001

HOLD-DOWN FOR PICKOFF

$45.00

In stock

Quantity

View product

Part 30

153991 - SCREW DRIVE SS

SKU: 153991

SCREW DRIVE SS

$25.00

In stock

Quantity

View product

Part 32

899-00-100-00 - UMB MACHINED

SKU: 899-00-100-00

UMB MACHINED

$195.00

In stock

Quantity

View product

Part 34

CA-375Z-259-XXA - GASKET, OGM UMB

SKU: CA-375Z-259-XXA

GASKET,OGM UMB

$65.00

In stock

Quantity

View product

Part 36

CC-219Z-633 - EBG - COVER-UMB PRIMARY ELECT MACH

SKU: CC-219Z-633-EBG

COVER-UMB PRIMARY ELECT MACH

$365.00

In stock

Quantity

View product

Part 38

230-00-300-00 - DUAL CHANNEL PRE-AMP - BR PLUS

SKU: 230-00-300-00

DUAL CHANNEL PRE-AMP - BR PLUS

$670.00

In stock

Quantity

View product

Part 38

230-10-300-50 - TERMINAL BOARD

SKU: 230-10-300-50

TERMINAL BOARD

$580.00

In stock

Quantity

View product

Part 40

1500909D - PIPE PLUG (ATEX APPROVED)

SKU: 1500909D

PIPE PLUG (ATEX APPROVED)

$195.00

In stock

Quantity

View product

Part 44

1500668 - PULSE WHEEL SCREW

SKU: 1500668

PULSE WHEEL SCREW

$25.00

In stock

Quantity

View product

Part 45

1500667 - LOCKWASHER SS

SKU: 1500667

LOCKWASHER SS

$25.00

In stock

Quantity

View product

Part 46

86033 - RETAINER WASHER

SKU: 86033

RETAINER WASHER

$95.00

In stock

Quantity

View product

Part 47

159678 - O-RING BUNA-N

SKU: 159678

O-RING BUNA-N

$45.00

In stock

Quantity

View product

Part 47

159678-022 - O-RING VITON-A

SKU: 159678-022

O-RING VITON-A

$50.00

In stock

Quantity

View product

Part 48

86286-000 - RIGHT HAND ROTOR

SKU: 86286-000

RIGHT HAND ROTOR

$2,730.00

In stock

Quantity

View product

Part 49

W86296 - TIMING GEAR SET (4" & 6" BI-ROTOR PLUS)

SKU: W86296

TIMING GEAR SET (4" & 6" BI-ROTOR PLUS)

$2,105.00

In stock

Quantity

View product

Part 52

1500574 - RTD FOR BI-ROTOR PLUS

SKU: 1500574

RTD FOR BI-ROTOR PLUS

$450.00

In stock

Quantity

View product

Part 54

1500609 - COMPRESSION SPRING (BI-ROTOR PLUS)

SKU: 1500609

COMPRESSION SPRINGT (BI-ROTOR PLUS)

$50.00

In stock

Quantity

View product
