Home›Shop›FMC2103 - SMITH 3" 210 VALVE EXPLODED VIEW

Parts diagram

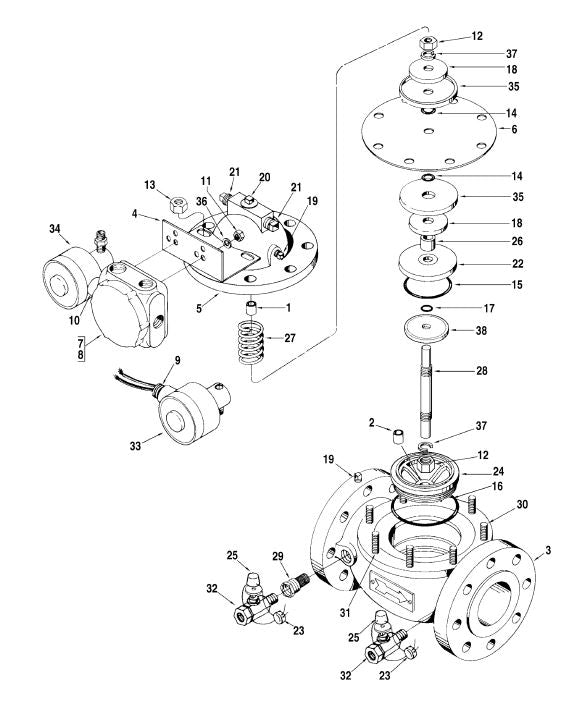

FMC2103 - SMITH 3" 210 VALVE EXPLODED VIEW

FMC2103 - SMITH 3" 210 VALVE EXPLODED VIEW

Search diagram parts

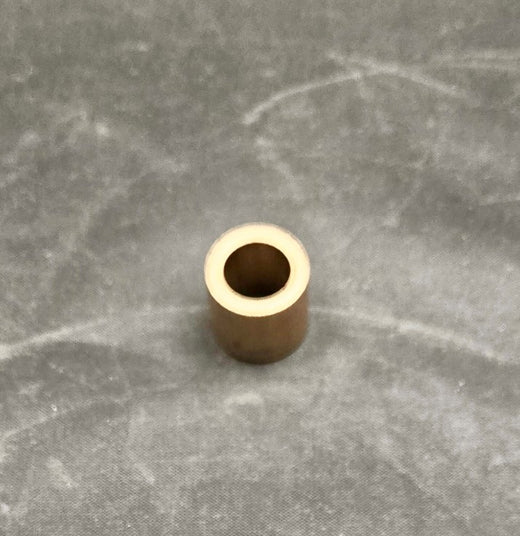

9971400 - BEARING-SLEEVE 3/8 ID 9/16 OD 1/2 LONG

Part 1

9971400 - BEARING-SLEEVE 3/8 ID 9/16 OD 1/2 LONG

SKU: 9971400

BEARING-SLEEVE 3/8 ID 9/16 OD 1/2 LONG

$8.00

In stock

Quantity

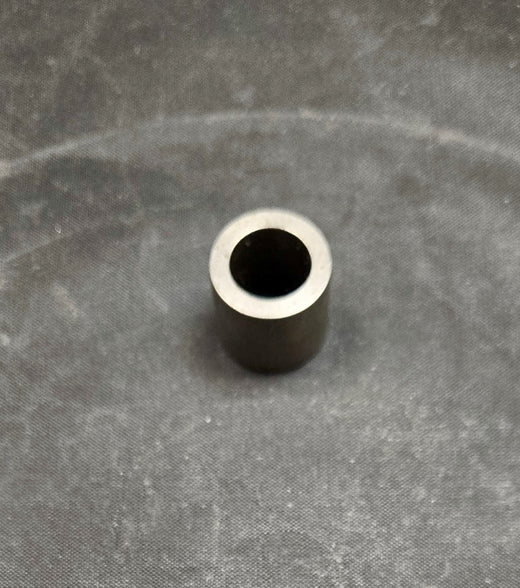

529675001 - BEARING-SLEEVE 3/8 ID X 9/16 OD X 1/2 LG

Part 2

529675001 - BEARING-SLEEVE 3/8 ID X 9/16 OD X 1/2 LG

SKU: 529675001

BEARING-SLEEVE 3/8 ID X 9/16 OD X 1/2 LG

$171.00

In stock

Quantity

528452001 - BRACKET - SOLENOID/JUNCT BOX

Part 4

528452001 - BRACKET - SOLENOID/JUNCT BOX

SKU: 528452001

BRACKET - SOLENOID/JUNCT BOX

$39.00

In stock

Quantity

507391001 - DIAPHRGM - 3.00" 200 SERIES VAL BUNA .05

Part 6

507391001 - DIAPHRGM - 3.00" 200 SERIES VAL BUNA .05

SKU: 507391001

DIAPHRGM - 3.00" 200 SERIES VAL BUNA .05

$65.00

In stock

Quantity

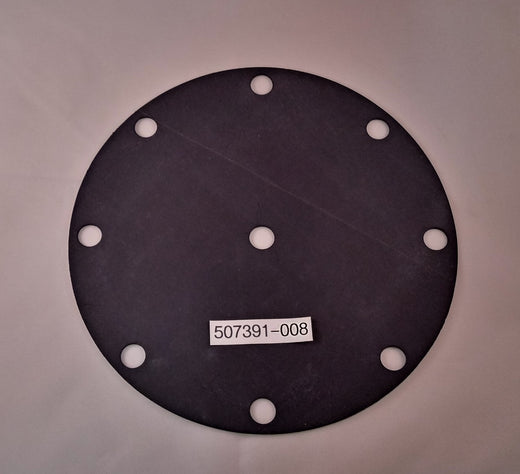

507391008 -DIAPHRGM - 3" 200 SERIES VAL LOW SWELL B

Part 6

507391008 -DIAPHRGM - 3" 200 SERIES VAL LOW SWELL B

SKU: 507391008

507391008 -DIAPHRGM - 3" 200 SERIES VAL LOW SWELL B

$56.00

In stock

Quantity

507391002 - DIAPHRGM - 3.00" 200 SERIES VAL VITON .0

Part 6

507391002 - DIAPHRGM - 3.00" 200 SERIES VAL VITON .0

SKU: 507391002

DIAPHRGM - 3.00" 200 SERIES VAL VITON .0

$317.00

In stock

Quantity

528496002 - VLV KIT - JUNC BOX 3-6 MOD200 W/O TB

Part 7

528496002 - VLV KIT - JUNC BOX 3-6 MOD200 W/O TB

SKU: 528496002

VLV KIT - JUNC BOX 3-6 MOD200 W/O TB

$624.00

In stock

Quantity

528454001 - BOX - JUNCTION WITH HARDWARE, 4.13 SQUARE

Part 8

528454001 - BOX - JUNCTION WITH HARDWARE, 4.13 SQUARE

SKU: 528454001

BOX - JUNCTION WITH HDWR, 4.13 SQUARE

$554.00

In stock

Quantity

2876400 - NUT - 5/16-18 HEX SERIES UNC-2B 17/64 TH

Part 11

2876400 - NUT - 5/16-18 HEX SERIES UNC-2B 17/64 TH

SKU: 2876400

NUT - 5/16-18 HEX SERIES UNC-2B 17/64 TH

$2.00

In stock

Quantity

640671001 - NUT-1/2-20 JAM HEX SER UNF-2B 5/16 THK

Part 12

640671001 - NUT-1/2-20 JAM HEX SER UNF-2B 5/16 THK

SKU: 640671001

NUT-1/2-20 JAM HEX SER UNF-2B 5/16 THK,

$2.00

In stock

Quantity

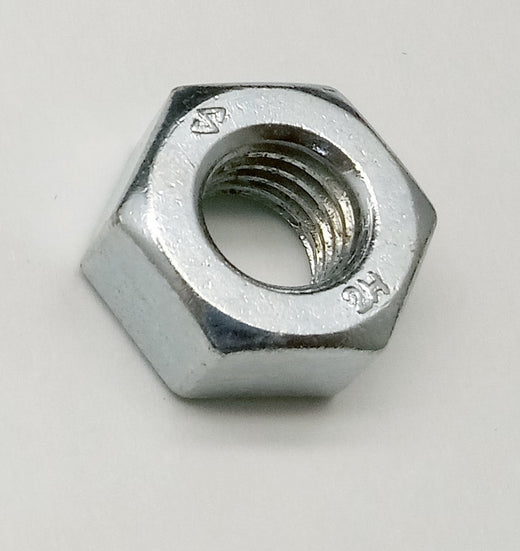

006618002P - NUT 7/16-14 HEX SERIES UNC-2B 3/8 THICK

Part 13

006618002P - NUT 7/16-14 HEX SERIES UNC-2B 3/8 THICK

SKU: 006618002P

NUT-7/16-14 HEX SERIES UNC-2B 3/8 THICK

$7.00

In stock

Quantity

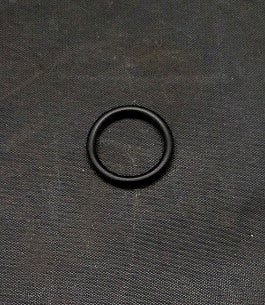

640887008 - O-RING BUNA-N

Part 14

640887008 - O-RING BUNA-N

SKU: 640887008

O-RING-1/2 I.D. X 5/8 O.D. X 1/16 SECT

$3.00

In stock

Quantity

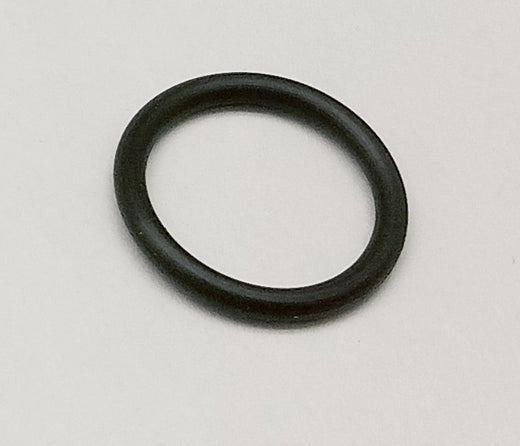

640798414 - O-RING VITON

Part 14

640798414 - O-RING VITON

SKU: 640798414

O-RING - 2-014 VITON 75

$4.00

In stock

Quantity

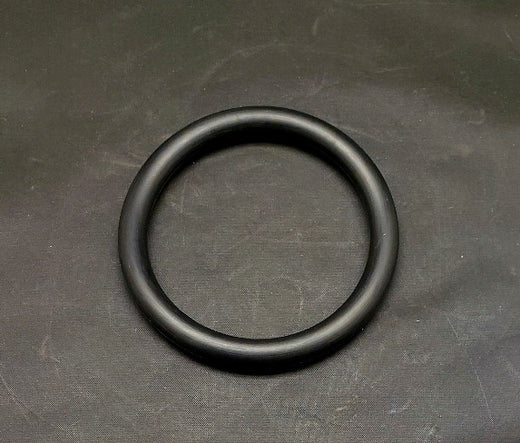

507568008 - O-RING

Part 15

507568008 - O-RING

SKU: 507568008

O-RING-2.875 X 3.625 X .375 LOW SWELL BU

$21.00

In stock

Quantity

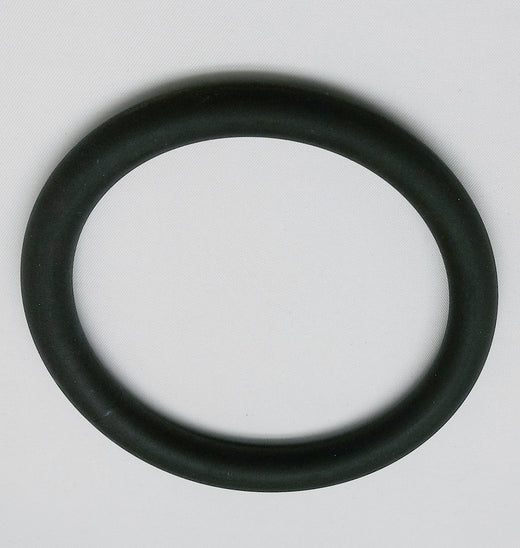

507568003 - O-RING

Part 15

507568003 - O-RING

SKU: 507568003

O-RING-2 7/8 X 3 5/8 X 3/8 VITON

$52.00

In stock

Quantity

640887423 -O-RING-3 1/2 X 3 5/8 X 1/16 BUNA-N

Part 16

640887423 -O-RING-3 1/2 X 3 5/8 X 1/16 BUNA-N

SKU: 640887423

640887423 -O-RING-3 1/2 X 3 5/8 X 1/16

$4.00

In stock

Quantity

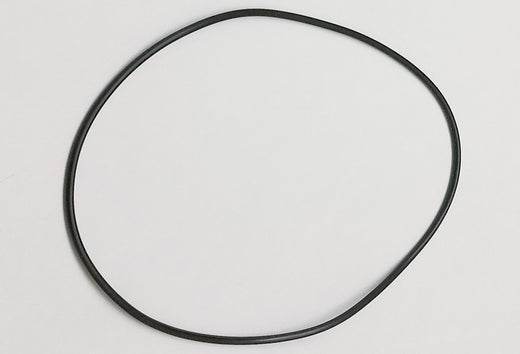

640798436 - O-RING VITON

Part 16

640798436 - O-RING VITON

SKU: 640798436

O-RING - 2-043 VITON 75

$16.00

In stock

Quantity

640913003 -O-RING-1/2 X 11/16 X 3/32 BUNA-N

Part 17

640913003 -O-RING-1/2 X 11/16 X 3/32 BUNA-N

SKU: 640913003

640913003 -O-RING-1/2 X 11/16 X 3/32

$2.00

In stock

Quantity

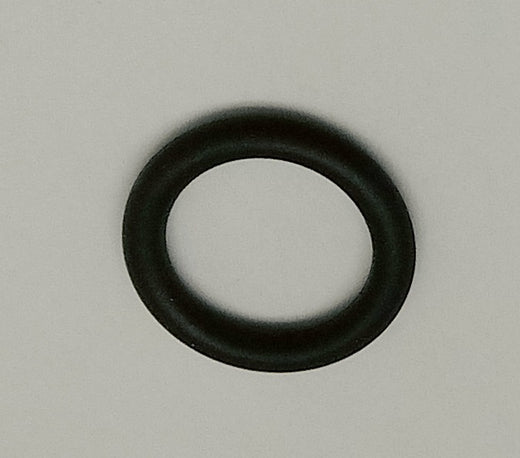

641276403 - O-RING VITON

Part 17

641276403 - O-RING VITON

SKU: 641276403

O-RING - 2-112 VITON 75

$4.00

In stock

Quantity

529437001 - PLATE - BACK UP 3" 200 SERIES VALVE

Part 18

529437001 - PLATE - BACK UP 3" 200 SERIES VALVE

SKU: 529437001

PLATE - BACK UP 3" 200 SERIES VALVE

$493.00

In stock

Quantity

6505002 - PLUG - PIPE, HEX HEAD, .50 NPT

Part 20

6505002 - PLUG - PIPE, HEX HEAD, .50 NPT

SKU: 6505002

PLUG - PIPE, HEX HEAD, .50 NPT

$4.00

In stock

Quantity

3131402 - PLUG - PIPE HEX HEAD 3/8 NPT 1010 THRU 1

Part 21

3131402 - PLUG - PIPE HEX HEAD 3/8 NPT 1010 THRU 1

SKU: 3131402

PLUG - PIPE HEX HEAD 3/8 NPT 1010 THRU 1

$4.00

In stock

Quantity

507692003 - RETAINER - O-RING, 3.00 - 200 SERIES VAL

Part 22

507692003 - RETAINER - O-RING, 3.00 - 200 SERIES VAL

SKU: 507692003

RETAINER - O-RING, 3.00 - 200 SERIES VAL

$298.00

In stock

Quantity

1627400 - SEAL-LEAD + WIRE SEAL, WITH 12" LONG

Part 23

1627400 - SEAL-LEAD + WIRE SEAL, WITH 12" LONG

SKU: 1627400

SEAL-LEAD + WIRE SEAL, WITH 12 INCH LONG

$2.00

In stock

Quantity

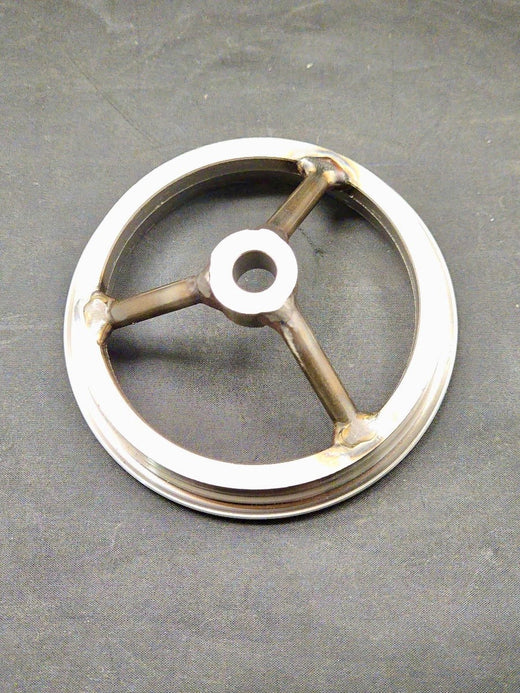

529500001 - SEAT - 3" STN STL

Part 24

529500001 - SEAT - 3" STN STL

SKU: 529500001

SEAT - 3" STN STL

$2,147.00

In stock

Quantity

643706401 - SHELL - DEEP DRAWN 1.125 OD X 2.50 LG S

Part 25

643706401 - SHELL - DEEP DRAWN 1.125 OD X 2.50 LG S

SKU: 643706401

SHELL - DEEP DRAWN 1.125 OD X 2.50 LG S

$30.00

In stock

Quantity

529435001 - SPACER - 3" 200 SERIES VALVE

Part 26

529435001 - SPACER - 3" 200 SERIES VALVE

SKU: 529435001

SPACER - 3" 200 SERIES VALVE

$152.00

In stock

Quantity

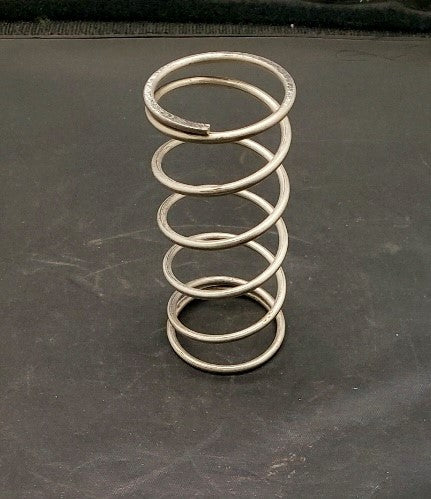

507756001 - SPRING-1.38 M.D. X 3.22 FREE, 302 STN ST

Part 27

507756001 - SPRING-1.38 M.D. X 3.22 FREE, 302 STN ST

SKU: 507756001

SPRING-1.38 M.D. X 3.22 FREE, 302 STN ST

$97.00

In stock

Quantity

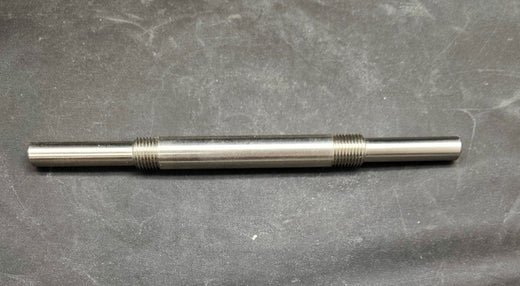

529434001 - STEM-3 200 SERIES VALVE

Part 28

529434001 - STEM-3 200 SERIES VALVE

SKU: 529434001

STEM-3 200 SERIES VALVE

$192.00

In stock

Quantity

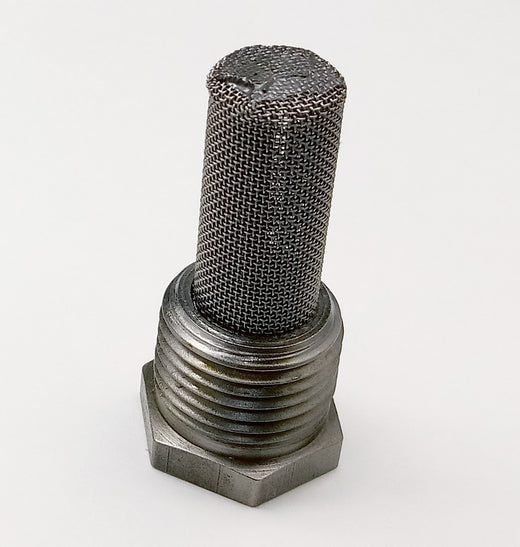

528341002 - STRAINER - 09SC .5 ST 3&4

Part 29

528341002 - STRAINER - 09SC .5 ST 3&4

SKU: 528341002

STRAINER - 09SC .5 ST 3&4

$156.00

In stock

Quantity

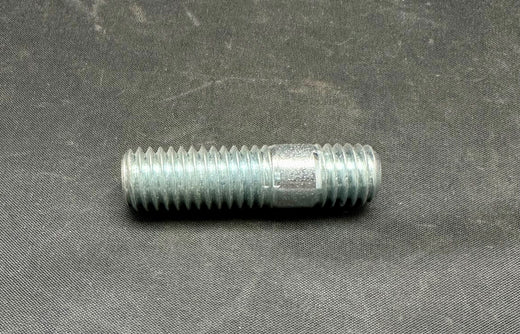

643823403 - STUD DE-7/16-14 1-3/4 1 1/2

Part 30

643823403 - STUD DE-7/16-14 1-3/4 1 1/2

SKU: 643823403

STUD DE-7/16-14 1-3/4 1 1/2

$24.00

In stock

Quantity

641109403 - VALVE - NEEDLE 3/8 NPT 303SS

Part 32

641109403 - VALVE - NEEDLE 3/8 NPT 303SS

SKU: 641109403

VALVE - NEEDLE 3/8 NPT 303SS

$543.00

In stock

Quantity

643710401 - VALVE - NEEDLE 3/8 NPT STEEL

Part 32

643710401 - VALVE - NEEDLE 3/8 NPT STEEL

SKU: 643710401

VALVE - NEEDLE 3/8 NPT STEEL

$253.00

In stock

Quantity

645728407 - SOL VLV-30A NC .25NPT VITON F

Part 33

645728407 - SOL VLV-30A NC .25NPT VITON F

SKU: 645728407

SOL VLV-30A NC .25NPT VITON F

$544.00

In stock

Quantity

645728413 - SOL VLV-30B NO .25NPT VITON F, 70 PSI DI

Part 34

645728413 - SOL VLV-30B NO .25NPT VITON F, 70 PSI DI

SKU: 645728413

SOL VLV-30B NO .25NPT VITON F, 70 PSI DI

$777.00

In stock

Quantity

529436004 - WASHER - DIAPHRAGM 3" 200 SERIES VALVE,

Part 35

529436004 - WASHER - DIAPHRAGM 3" 200 SERIES VALVE,

SKU: 529436004

WASHER - DIAPHRAGM 3" 200 SERIES VALVE,

$147.00

In stock

Quantity

2917400 - WASHER - LOCK SPRING .31 SCREW .078 THIC

Part 36

2917400 - WASHER - LOCK SPRING .31 SCREW .078 THIC

SKU: 2917400

WASHER - LOCK SPRING .31 SCREW .078 THIC

$2.00

In stock

Quantity

2788401 - WASHER-LOCK SPRING .50 SCREW .125 THICK

Part 37

2788401 - WASHER-LOCK SPRING .50 SCREW .125 THICK

SKU: 2788401

WASHER-LOCK SPRING .50 SCREW .125 THICK

$2.00

In stock

Quantity

528914001 - WASHER - O-RING MACH, 3" 200 SERIES VALV

Part 38

528914001 - WASHER - O-RING MACH, 3" 200 SERIES VALV

SKU: 528914001

WASHER - O-RING MACH, 3" 200 SERIES VALV

$284.00

In stock

Quantity
