FMCC2 - C2 STEEL METER
$13,000.00
Need this part verified? Send us the manufacturer, model, or diagram reference and Franklen can help confirm fit before ordering.
FMCC2

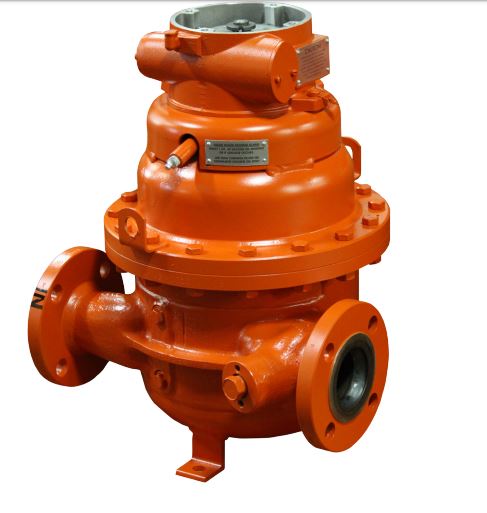

The Smith Meter Model C2 Meter is a 2", double-case,straight-through (S1 through S7), rotary vane type, positivedisplacement meter. Applications include: blending, batching,dispensing, inventory control, and custody transfer of oils,solvents, chemicals, paints, fats and fertilizers.
- Superior Accuracy – The Smith Meter®Rotary Vane Meter principle, combined withthe meter’s uniquely designed (offset) inletand outlet nozzles, minimizes pressure dropacross the measuring chamber, which reducesflow through the meters' clearances to maximizeaccuracy.
- Low Pressure Drop – Streamlined flow pathprovides low pressure drop.
- Positive and Accurate Registration – Hightorque drive calibrator with adjustment in 0.05%increments ensures accurate registration.
- Long Service Life – Low friction ball bearings,fixed cam-type timing, and rugged constructiongive sustained accuracy and long service life
