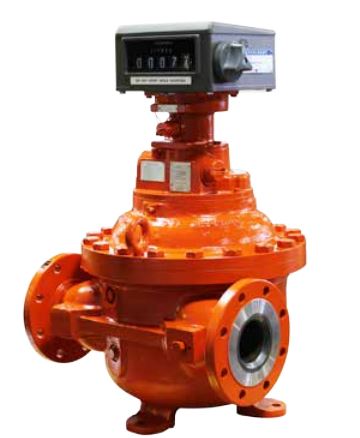

FMCE4 - SMITH E4 METER

The Smith Meter® Model E4 Meter is a doublecase, straight-through positive displacement meter.It incorporates 4-inch ANSI flanges and should beapplied in flow systems that handle rates typical of3-inch systems, but have 4-inch piping due to pumpsand pressure loss considerations. Applications include:blending, batching, dispensing, inventory control, andcustody transfer. The relatively high intermittent ratingis for use on systems that would require this flow rateinfrequently. » Superior Accuracy – The Smith Meter® RotaryVane meter principle, combined with themeter’s uniquely designed (offset) inlet andoutlet nozzles, minimizes pressure drop acrossthe measuring chamber, which reducesflow through meter clearances to maximizeaccuracy.» Low Pressure Drop – Streamlined flow pathprovides low pressure drop.» Positive and Accurate Registration – Hightorque drive calibrator with adjustmentin 0.05% increments ensures accurateregistration.» Long Service Life – Low friction ballbearings, fixed cam-type timing, and ruggedconstruction give sustained accuracy and longservice life.
