Home›Shop›PRIME4PD - FMC (SMITH) PRIME 4 METER EXPLODED VIEW

Parts diagram

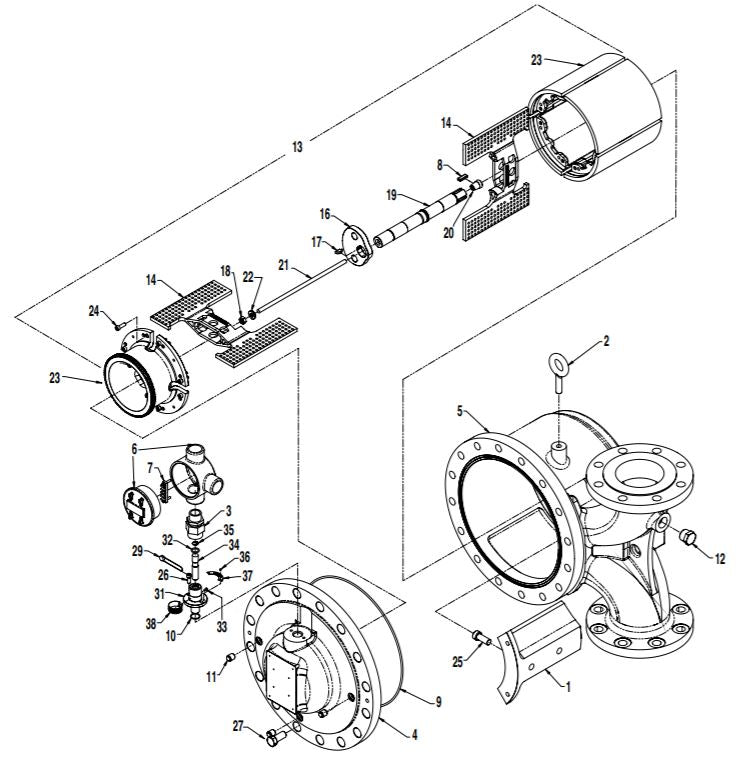

PRIME4PD - FMC (SMITH) PRIME 4 METER EXPLODED VIEW

PRIME4PD - FMC (SMITH) PRIME 4 METER EXPLODED VIEW

Search diagram parts

554027001 - BLOCK - MACHINING, PRIME 4 P.D. METER

Part 1

554027001 - BLOCK - MACHINING, PRIME 4 P.D. METER

SKU: 554027001

BLOCK - MACHINING, PRIME 4 P.D. METER

$1,209.00

In stock

Quantity

644974403 - BOLT-EYE PLAIN, .500-13 X 1.75 SHANK AST

Part 2

644974403 - BOLT-EYE PLAIN, .500-13 X 1.75 SHANK AST

SKU: 644974403

BOLT-EYE PLAIN, .500-13 X 1.75 SHANK AST

$53.00

In stock

Quantity

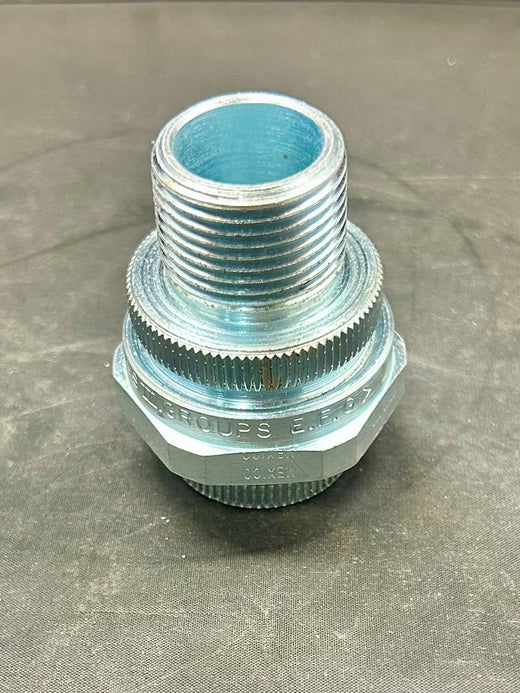

641402404 - UNION - CONDUIT 3/4 NPT, NON-EXPANDABLE

Part 3

641402404 - UNION - CONDUIT 3/4 NPT, NON-EXPANDABLE

SKU: 641402404

UNION - CONDUIT 3/4 NPT, NON-EXPANDABLE

$87.00

In stock

Quantity

554023002 - BOX - JUNCTION, ASSEMBLY, EXPF./NEMA4

Part 6

554023002 - BOX - JUNCTION, ASSEMBLY, EXPF./NEMA4

SKU: 554023002

BOX - JUNCTION, ASSEMBLY, EXPF./NEMA4

$331.00

In stock

Quantity

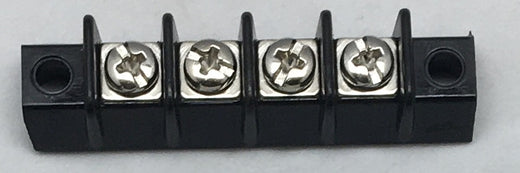

644125401 - TERMINAL - SINGLE ROW TERMINAL BLOCK

Part 7

644125401 - TERMINAL - SINGLE ROW TERMINAL BLOCK

SKU: 644125401

TERMINAL - SINGLE ROW TERMINAL BLOCK

$43.00

In stock

Quantity

554292001 - KEY - SHAFT LOCKING DEVICE PRIME 4 P.D.

Part 8

554292001 - KEY - SHAFT LOCKING DEVICE PRIME 4 P.D.

SKU: 554292001

KEY - SHAFT LOCKING DEVICE PRIME 4 P.D.

$36.00

In stock

Quantity

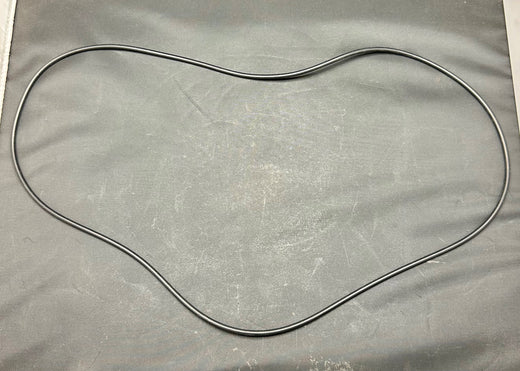

641069462 - O-RING

Part 9

641069462 - O-RING

SKU: 641069462

O-RING-12 X 12-1/4 X 1/8 #278

$24.00

In stock

Quantity

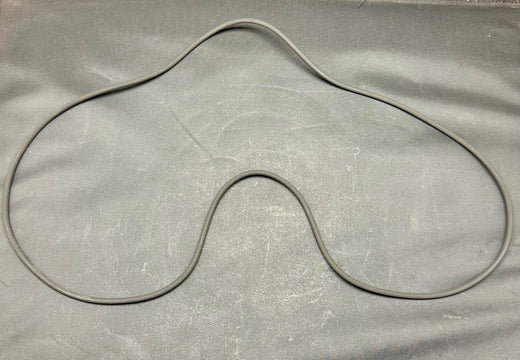

640894447 - O-RING

Part 9

640894447 - O-RING

SKU: 640894447

O-RING - 2-278 VITON 75

$87.00

In stock

Quantity

640798419 - O-RING BUNA-N, PRIME 4 SENSOR

Part 10

640798419 - O-RING BUNA-N, PRIME 4 SENSOR

SKU: 640798419

O-RING-.688 X .189 X .062 #

$2.00

In stock

Quantity

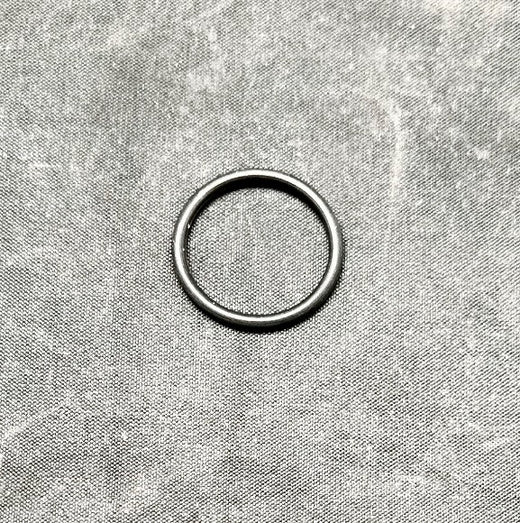

640798417 - O-RING VITON

Part 10

640798417 - O-RING VITON

SKU: 640798417

O-RING - 2-017 VITON 75

$8.00

In stock

Quantity

2407402 - PLUG-PIPE HEX HEAD 1/4 NPT

Part 11

2407402 - PLUG-PIPE HEX HEAD 1/4 NPT

SKU: 2407402

PLUG-PIPE HEX HEAD 1/4 NPT

$2.00

In stock

Quantity

6878002 - PLUG - PIPE HEX HEAD .75 NPT

Part 12

6878002 - PLUG - PIPE HEX HEAD .75 NPT

SKU: 6878002

PLUG - PIPE HEX HEAD .75 NPT

$7.00

In stock

Quantity

554107002 - ROTOR-ASSEMBLY PRIME 4 P.D. METER

Part 13

554107002 - ROTOR-ASSEMBLY PRIME 4 P.D. METER

SKU: 554107002

ROTOR-ASSEMBLY PRIME 4 P.D. METER

$8,840.00

In stock

Quantity

554015001 - BLADE-PRIME MACHINING

Part 14

554015001 - BLADE-PRIME MACHINING

SKU: 554015001

BLADE-PRIME MACHINING

$1,258.00

In stock

Quantity

554030002 - SHAFT - ASSEMBLY PRIME 4 P.D. METER

Part 15

554030002 - SHAFT - ASSEMBLY PRIME 4 P.D. METER

SKU: 554030002

SHAFT - ASSEMBLY PRIME 4 P.D. METER

$2,651.00

In stock

Quantity

554093001 - CAM-GRINDING PRIME 4 (NITRIDE) SMITH MET

Part 16

554093001 - CAM-GRINDING PRIME 4 (NITRIDE) SMITH MET

SKU: 554093001

CAM-GRINDING PRIME 4 (NITRIDE) Smith MET

$812.00

In stock

Quantity

554028001 - KEY - KEY MOD., PRIME METER

Part 17

554028001 - KEY - KEY MOD., PRIME METER

SKU: 554028001

KEY - KEY MOD., PRIME METER

$32.00

In stock

Quantity

642148415 - NUT-5/16-18 HEX HVY

Part 18

642148415 - NUT-5/16-18 HEX HVY

SKU: 642148415

NUT-5/16-18 HEX HVY

$3.00

In stock

Quantity

554133001 - SHAFT - ROTOR, PRIME 4 P.D.METER, FINAL

Part 19

554133001 - SHAFT - ROTOR, PRIME 4 P.D.METER, FINAL

SKU: 554133001

SHAFT - ROTOR, PRIME 4 P.D.METER, FINAL

$2,180.00

In stock

Quantity

554025002 - CONE - PRIME 4 P.D. MTR SHAFT ASSEMBLY

Part 20

554025002 - CONE - PRIME 4 P.D. MTR SHAFT ASSEMBLY

SKU: 554025002

CONE - PRIME 4 P.D. MTR SHAFT ASSY

$221.00

In stock

Quantity

553945001 - TIE ROD - TIE, SHAFT ASSEMBLY PRIME 4 P.D. M

Part 21

553945001 - TIE ROD - TIE, SHAFT ASSEMBLY PRIME 4 P.D. M

SKU: 553945001

TIE ROD - TIE, SHAFT ASSY PRIME 4 P.D. M

$97.00

In stock

Quantity

642514401 - WASHER-FLAT .75 OD .344 ID .125 THICK

Part 22

642514401 - WASHER-FLAT .75 OD .344 ID .125 THICK

SKU: 642514401

WASHER-FLAT .75 OD .344 ID .125 THICK

$13.00

In stock

Quantity

553949001 - ROTOR-ASSEMBLY (FINAL MACHINING) PRIME4 P.D.

Part 23

553949001 - ROTOR-ASSEMBLY (FINAL MACHINING) PRIME4 P.D.

SKU: 553949001

ROTOR-ASSY (FINAL MACHINING) PRIME4 P.D.

$4,026.00

In stock

Quantity

646177403 - SCREW C-1/4-20 UNC-2A X 3/4 HEX SOCKET

Part 24

646177403 - SCREW C-1/4-20 UNC-2A X 3/4 HEX SOCKET

SKU: 646177403

SCREW C-1/4-20 UNC-2A X 3/4 HEX SOCKET

$2.00

In stock

Quantity

646177404 - SCREW C-1/2-13 UNC-3A X 1-1/4 HEX SOCKE

Part 25

646177404 - SCREW C-1/2-13 UNC-3A X 1-1/4 HEX SOCKE

SKU: 646177404

SCREW C-1/2-13 UNC-3A X 1-1/4 HEX SOCKE

$8.00

In stock

Quantity

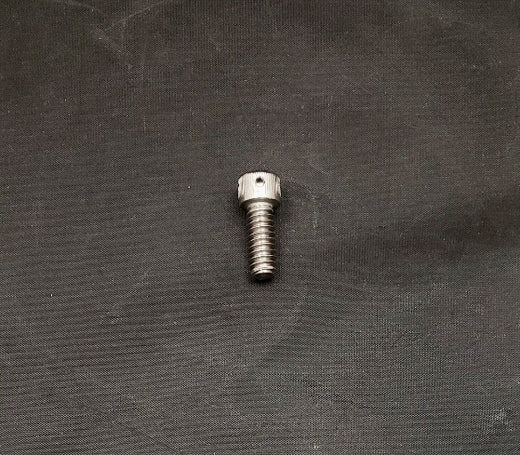

641069401 - SCREW C-1/4-20 UNC-3A X 5/8 HEX SOCKET

Part 26

641069401 - SCREW C-1/4-20 UNC-3A X 5/8 HEX SOCKET

SKU: 641069401

SCREW C-1/4-20 UNC-3A X 5/8 HEX SOCKET

$8.00

In stock

Quantity

646229401 - SCREW C - HEX HEAD CAP, M20 X 2.5 X 45

Part 27

646229401 - SCREW C - HEX HEAD CAP, M20 X 2.5 X 45

SKU: 646229401

SCREW C - HEX HEAD CAP, M20 X 2.5 X 45

$7.00

In stock

Quantity

1627400 - SEAL-LEAD + WIRE SEAL, WITH 12" LONG

Part 29

1627400 - SEAL-LEAD + WIRE SEAL, WITH 12" LONG

SKU: 1627400

SEAL-LEAD + WIRE SEAL, WITH 12 INCH LONG

$2.00

In stock

Quantity

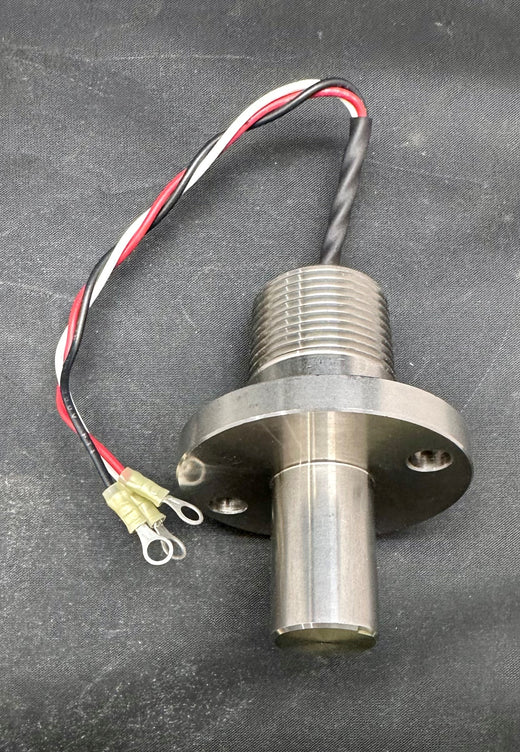

554571001 - SINGLE PULSE ASSEMBLY

Part 30

554571001 - SINGLE PULSE ASSEMBLY

SKU: 554571001

SINGLE PULSE ASSEMBLY

$743.00

In stock

Quantity

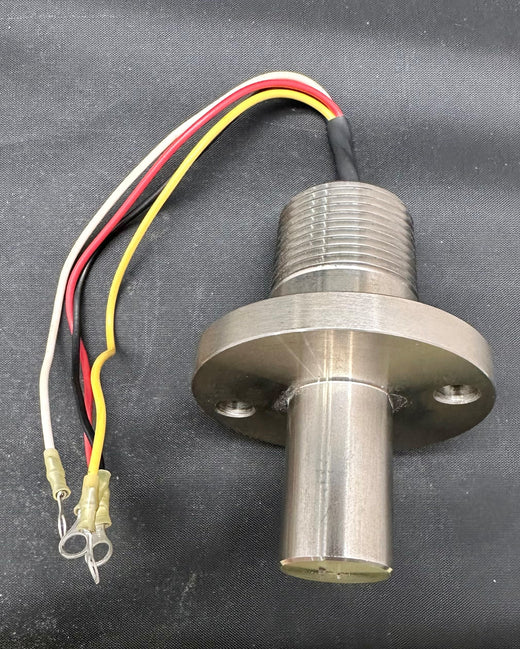

554571002 - SENSOR - DUAL PULSE ASSEMBLY

Part 30

554571002 - SENSOR - DUAL PULSE ASSEMBLY

SKU: 554571002

SENSOR - DUAL PULSE ASSEMBLY

$1,091.00

In stock

Quantity

554570001 - SENSOR W/ O-RING GLAND (UL/CUL)

Part 31

554570001 - SENSOR W/ O-RING GLAND (UL/CUL)

SKU: 554570001

SENSOR W/ O-RING GLAND (UL/CUL)

$689.00

In stock

Quantity

641276403 - O-RING VITON

Part 32

641276403 - O-RING VITON

SKU: 641276403

O-RING - 2-112 VITON 75

$4.00

In stock

Quantity

640689001 - PLUG-PIPE, HEX SOC HD, .06 NPT, STL, BLK

Part 33

640689001 - PLUG-PIPE, HEX SOC HD, .06 NPT, STL, BLK

SKU: 640689001

PLUG-PIPE, HEX SOC HD, .06 NPT, STL, BLK

$2.00

In stock

Quantity

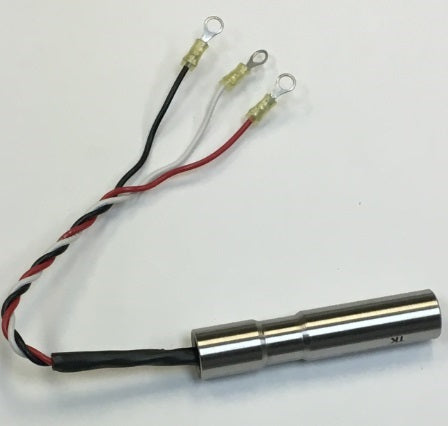

646592402 - SENSOR - SINGLE PULSE PICKUP, PRIME PD M

Part 34

646592402 - SENSOR - SINGLE PULSE PICKUP, PRIME PD M

SKU: 646592402

SENSOR - SINGLE PULSE PICKUP, PRIME PD M

$687.00

In stock

Quantity

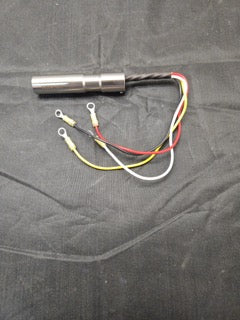

646596402 - SENSOR - DUAL PULSE PICKUP, PRIME P.D. M

Part 34

646596402 - SENSOR - DUAL PULSE PICKUP, PRIME P.D. M

SKU: 646596402

SENSOR - DUAL PULSE PICKUP, PRIME P.D. M

$712.00

In stock

Quantity

646016402 - RING - RETAINING, BOWED INT., N5001-50, .5

Part 35

646016402 - RING - RETAINING, BOWED INT., N5001-50, .5

SKU: 646016402

RING-RETAINING, BOWED INT., N5001-50, .5

$8.00

In stock

Quantity

554111001 - TAG - CAUTION, SENSOR HSG., PRIME 4 & F4

Part 37

554111001 - TAG - CAUTION, SENSOR HSG., PRIME 4 & F4

SKU: 554111001

TAG - CAUTION, SENSOR HSG., PRIME 4 & F4

$28.00

In stock

Quantity

554111002 - TAG-CAUTION, SENSOR ASSEMBLY

Part 38

554111002 - TAG-CAUTION, SENSOR ASSEMBLY

SKU: 554111002

TAG-CAUTION, SENSOR ASSY.

$19.26

In stock

Quantity
